ADVANTECH ECU-1710A-A32E

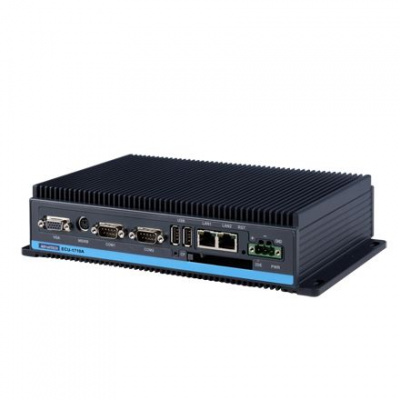

Advantech ECU-1710A-A32E Промышленный компьютер, Intel Atom D510 1.66 GHz, AIO and DIO function
ADVANTECH
Промышленный компьютер, Intel Atom D510 1.66 GHz, AIO and DIO function  Advantech ECU-1710A-A32E
121 898 руб.
Производитель: ADVANTECH

Основные характеристики ECU-1710A

  • Onboard Intel Atom D510 1.66 GHz processor
  • 2 x RS-232 ports
  • 2 x 10/100Base-T RJ-45 ports
  • 2 x USB ports
  • Integrated PCI-1710UL & PCI-1720U modules
  • 16-ch single-ended or 8-ch differential or a combination of Analog Input
  • 12-bit A/D converter, with up to 100kS/s sampling rate
  • 4-ch 12-bit Analog Output
  • 16-ch Isolated Digital Input/Digital Output
  • 1-ch Isolated Counter

Модификации ECU-1710A

  • ECU-1710A-A32E

Спецификация

ECU-1710A-A32E

Analog Input

Sampling Rates100kS/s
Resolution12 bits
Unipolar Input (V)0~10,0~5
Bipolar Inputs (V)±10,±5
Channels16 single-ended/8 differential
Input Impedance18MO

General

Power Consumption28 W (Typical)
Weight2.4 kg (Typical)
OS SupportWES 2009
Power Requirement18 ~ 30 VDC (e.g 24 V @ 2 A) (Min. 48 W), AT
Dimensions255x152x59 mm (10"x6.0"x2.3")
Operating Temperature-10 ~ 60°C (14 ~140°F) @ 5 ~ 85% RH
Storage Temperature-20 ~ 80°C (-4 ~176°F)

System Hardware

Intel Atom D510 1.66 GHz/ 512 KB L2 Cache
1GB DDRII 667MHZ
1xinternal typeI/II CompactFlash slot,1xBuilt-in 2.5" SATA HDD bracket
Keyboard/Mouse Ports1xPS/2
IndicatorsLEDs for power, IDE and LAN (Active, Status)

Timer/Counter

Resolution16 bits
Channels1

I/O Interface

Serial Ports2xRS-232
LAN2x10/100 Base-T RJ-45 ports
USB2xUSB, EHCI, Rev. 2.0 compliant

Digital Output

Channels16

Environment

Humidity (Operating)5 ~ 95% RH, non-condensing (IEC-60068-2-3)
