ADVANTECH ITA-5710-00A1E

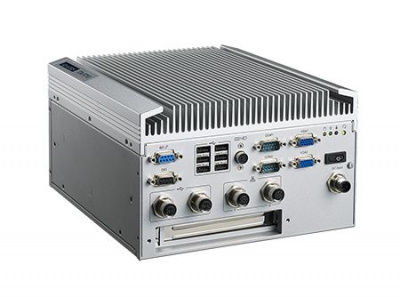

Advantech ITA-5710-00A1E Промышленный компьютер, ITA-5710 Atom D525, 2G DDR3, 2LAN, M12,
ADVANTECH
Промышленный компьютер, ITA-5710 Atom D525, 2G DDR3, 2LAN, M12,  Advantech ITA-5710-00A1E
102 582 руб.
Производитель: ADVANTECH

Основные характеристики ITA-5710

  • Fanless computer for railway vehicle applications, fully compliant with EN50155
  • Satisfy temp. standard: EN 50155 T2 (-40 ~ 55°C) and IEC 61373 body mountclass B
  • Compliant with EN 50121-3-2 EMC test standard
  • Ruggedized connectors (M12) used for communication and power ports
  • Optional PCI/ /miniPCIe slots for expansion
  • Support Easy-swap HDD/SSD/CF module

Модификации ITA-5710

  • ITA-5710-00A1E

Спецификация

ITA-5710-00A1E

Certification

EMCCE/FCC Class A, CCC, BSMI
Safety CertificationsUL, CB, CCC

Display

ControllerIntel Embedded Gen3.5+ GFX Core technology Integrated
Graphic MemoryShare with system memory up to 256 MB
Multiple DisplaySingle / Dual

EN 50155 Compliance

Ambient TemperatureEN 50155 T2 (-40 ~ 55°C)
EMCEN 50121-3-2
Shock and VibrationIEC 61373 body mount class B
Supply Change OverClass C1

Environment

Non-Operational Temperature-40 ~ 85°C (-40 ~ 185°F)
Operating Humidity5% ~ 95% @ 40°C
Operational Temperature-40 ~ 60°C

Ethernet

Connector2xM12 A-coded(F) 8-pin
ControllerLAN1: Intel I210; LAN2: Intel I210
Interface10/100/1000 Mbps

Expansion Slots

Mini PCIe1
PC104+1xPCI32 33Mhz Slot

I/O

Audio1xSpeaker-out with 2 x4W Amp, 1xMic-in
COM Port2 (1xRS232, 1xRS232/422/485)
Digital I/O1xDB9, 8-bit
PS/2 Keyboard/Mouse1
USB2.02/6
VGA2

Mechanical

Dimension210x129x240 mm

Memory

Max. CapacityOnboard 2 GB
TechnologyDDR3 800 MHz

Power

Connector1xM12 A-coded(M) 4-pin
InputDC 24V input compliant with EN50155 class S2/C1 (Optional DC 48/72/110V input)

Processor System

BIOSAMI SPI 16Mbit
ChipsetIntel ICH8-M
CPUIntel Atom D525
L2 Cache1 MB
Max. Speed1.8 GHz

Storage

CFast1
CompactFlashCompactFlash Type I/II (Primary Master IDE Channel)
HDD1x2.5” SSD/HDD Easy-Swap bay

WatchDog Timer

IntervalProgrammable 1 ~ 255 sec/min
OutputSystem Reset
