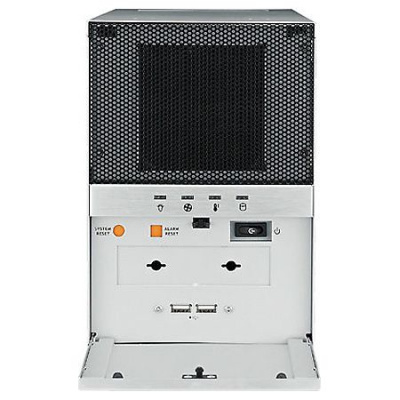

ADVANTECH AIMC-3420-00A1E
Основные характеристики AiMC-3420
- Intel H61 Platform
- Intel 3rd/2nd gen Core i7/i5/i3 CPU (LGA1155)
- One PCIe x16 & two PCIe x1 Expansion Slots
- Compact & Rich I/O Configuration
- One internal 3.5" SATA HDD bays with shock-resistant
- Optional front removable 2.5" HDD bay
- VGA, 2 GbE LAN, 8 USB2.0, 2 COM
- Easy-to-maintain system fan and reusable filter
- Energy Savings
- 300W 80Plus PSU
Спецификация
AIMC-3420-00A1E | |
Form Factor | |
| Form Factor | Wallmount |
Processor System | |
| Intel Core i3/i5/i7 (LGA1155 socket) | |
| CPU TDP | Up to 95 W |
| Frequency | Up to 3.4 GHz |
| Core Number | 4 |
| L3 Cache | 8 MB |
| BIOS | AMI SPI 64 Mbit |
| Chipset | Intel H61 |
| Integrated Graphics | Yes |
Memory | |
| Technology | DDR3 1066/1333 MHz |
| Capacity | Up to 16 GB (8 GB per DIMM) |
| ECC Support | - |
| Socket | 2x204-pin SODIMM |
| Max. Capacity | 8 GB |
Display | |
| Controller | Intel HD graphics Integrated |
| Graphic Memory | - |
| Multiple Display | Dual |
Expansion Interface | |
| PCI Expressx16 | 1 |
| PCI Expressx4 | - |
| PCI Expressx1 | 2 |
| Mini PCIe | - |
Ethernet | |
| Controller | LAN1: Intel 82579VLAN2: Intel 82583V |
| Speed | 10/100/1000 Mbps |
| Connector | 2xRJ45 |
WatchDog Timer | |
| Output | System Reset |
| Interval | Programmable 1~255 sec |
Storage | |
| CFast | - |
Front I/O Interface | |
| Display | - |
| LAN | - |
| USB3.0 | - |
| USB2.0 | 2 |
| COM | - |
| PS/2 | - |
| Audio | - |
Rear I/O Interface | |
| Display | 1 |
| LAN | 2 |
| USB2.0 | 5 |
| COM | 2 (RS232) |
| PS/2 | 1 (1xKeyboard or 1xMouse) |
| DVI | 1 |
| Ethernet | 2 |
| VGA | 1 |
Power Supply | |
| Power Type | ATX |
| Output Wattage | 300W |
| Input Range | AC 100 V ~ 240 V |
Cooling | |
| System Fan | 1 (9cm / 53 CFM) |
| Air Filter | Yes |
Environment | |
| Operational Temperature | 0 ~ 40°C (32 ~ 104°F) (Operational humidity: 40°C @ 85% RH Non-Condensing) |
| Non-Operational Temperature | -20 ~ 60°C (-4 ~ 140°F) and 40°C @ 95% RH Non-Condensing |
| Operating Vibration | 1 Grms |
| Non-Operating Vibration | 2 Grms |
| Operating Shock | 10 G |
Physical Characteristics | |
| Weight | 5 kg (11.0 lb) |
| Dimensions (WxHxD) | 150x222x270 mm (5.9x8.7x10.6) |
Certification | |
| EMC | CE/FCC Class A, CCC, BSMI |
| Safety Certifications | UL, CB, CCC, BSMI |
Disk Drive Bay | |
| 3.5" Internal | 1 |
| 2.5" Internal | - |
Miscellaneous | |
| LED Indicators | Power, HDD, temperature |
| Control | Power Switch |
Management Solution | |
| Software | SUSIAccess |
Processor | |
| Chipset | Intel H61 |
Expansion | |
| PCIex16 | 1 |
| PCIex1 | 2 |
Network | |
| LAN | 2 GbE |
I/O | |
| USB | 8 (2.0) |
| COM | 2xRS-232 |
| PS/2 KB/Mouse | 1 |
